photos:Some details of the Predator drive sled

A look into the hole that the sled installs into

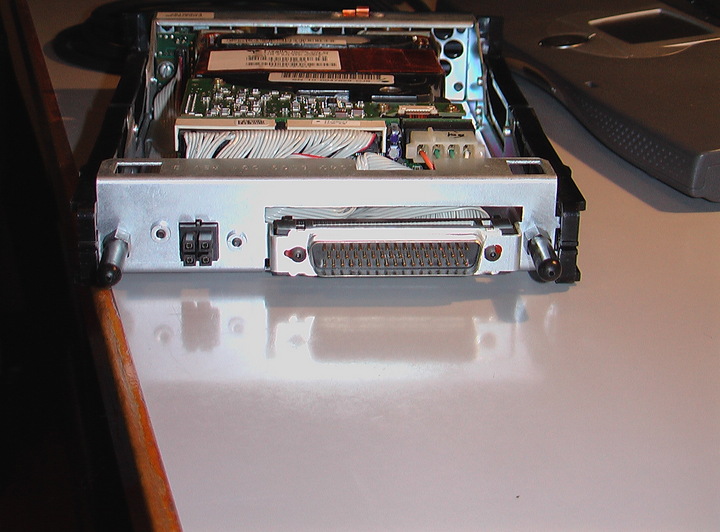

A power series sled.
The back of the Predator sled should be similar, but with dual D-subs for dataDate: 2007:01:03 22:12:45
Cable layout
