Bulkheads

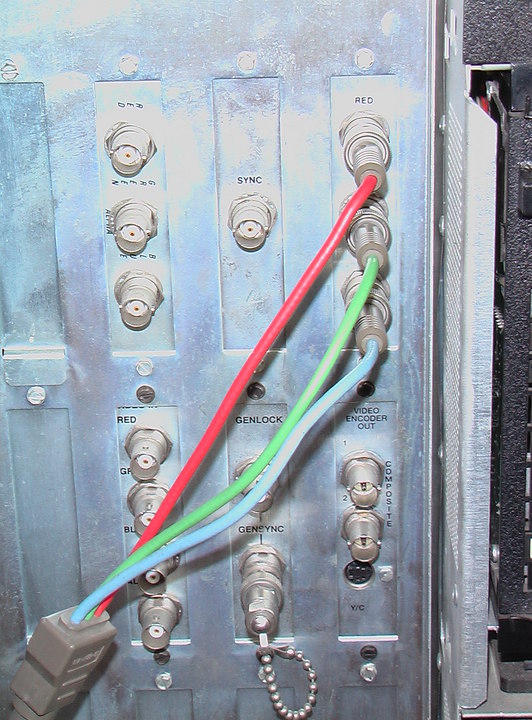

Closeup
(top): Alpha R/G/B out, Monitor Sync out, Monitor R/G/B out
(bottom): Genlock R/G/B in, Genlock in/out, Composite and S-Video outDate: 2007:05:12 14:08:51

All connectors of the DG1 are wired now
